Description
Key Facts at a Glance
- Complete HMI solution: hardware and software for visualization and control of industrial automation processes
- Scalable portfolio: compact entry-level options through high-end applications
- Modular expandability: access to special software and partner apps from ctrlX World
- Faster HMI development: ready-made templates help build software applications more easily and quickly
- Intuitive operation: designed to improve the connection between people and machines
Scalable HMI Hardware
Bosch Rexroth offers a scalable HMI portfolio for a wide range of machine visualization and operation requirements:

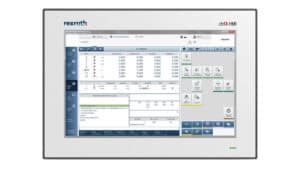

Web Panel
Optimized for HTML5 browser-based visualization
Available in 7″, 10″ and 15″ sizes
Entry-level solution for less complex applications
Ideal for compact, browser-based machine visualization.
Housed Panel PC
IP66 enclosure for VESA mounting
21″ 16:9 display format
Multi-touch gesture control
Designed for robust machine operation and flexible mounting.
Display
Displays with housed and built-in solutions
Sizes from 10″ to 24″
Horizontal and vertical formats
Flexible display options for PC-based visualization with ctrlX IPC.
Built-In Panel PC
Combination of box PC and multi-touch display
16:9 formats from 10″ to 21″
Multi-touch gesture control
Combines computing power and operator interface in one machine-ready solution.
Machine Operating Panel
Supports compact machine design
Extension for 15″ to 21″ displays, panel PCs and web panels
Adaptable to machine-specific requirements
Ideal when machine builders need operator controls integrated into the HMI concept.
One HMI Platform – Flexible, Intuitive and Efficient
Flexible HMI Solution for Automation Tasks
Rapid adaptability, machine networking and decentralized automation designs continue to shape modern manufacturing. ctrlX HMI provides the foundation for software-defined flexibility and operator-friendly usability, from compact HTML5-capable web panels to powerful devices for more complex processes. HTML5-based visualization can run independently of hardware and across platforms, helping machine builders standardize the operator experience across different device types.
CDI+ Single Cable Solution
The CDI+ interface expands ctrlX HMI installation possibilities by transmitting both video and touch functions over a single cable. Bosch Rexroth states that this can be used over distances of up to 100 meters, simplifying installation while supporting clean, reliable communication between the HMI and IPC.
Web HMI Solutions from ctrlX World
Web HMI solutions from ctrlX World partners enable individualized visualization for different machine and system types. With HTML5 web technology and a central HMI server unit on ctrlX OS, HMI interfaces can run on ctrlX HMI devices independently of the operating system. The free HMI base template also helps reduce development effort by providing image elements for functions such as navigation, machine diagnostics and recipe management.
Technical Data – Web Panel WR21
| Specification | WR21 |
|---|---|
| CPU | ARM i.MX8M Mini Quad Core, 1.6 GHz |
| RAM | 2 GB |
| Memory | 16 GB eMMC |
| Web browser | Chromium |
| Screen sizes | 7″ (1024 x 600), 10.1″ (1280 x 800), 15.6″ (1366 x 768) |
| Operation | Capacitive 10-point multi-touchscreen / EDT |
| Ethernet | 2x 10/100/1000 MBit/s Ethernet (RJ45) |
| USB | 2x USB-A (2.0), 1x Micro USB (2.0/internal) |
| Input voltage | 24 V DC, +/-20% |
| Mounting | Panel mounting or VESA mounting |
| Degree of protection | IP66 front, IP20 rear |
| Standards | CE, UL, cUL, FCC, CCC |
Additional HMI Options
- Display DR / DE: built-in and housed display options with capacitive 10-point multi-touch operation, multiple screen sizes and horizontal or vertical options depending on the model.
- Panel-PC VR / VE: Windows 10 IoT Enterprise-based panel PCs with Intel processor options, multi-touch displays and multiple screen-size configurations.
- ctrlX IPC integration: supports PC-based visualization and remote HMI solutions within the ctrlX AUTOMATION portfolio.
