SCHMALZ Portable Conveyor Systems Destuff-it™ / Restuff-it™
Product Spolight
Ergonomic systems for loading and unloading floor-loaded freight carriers such as trucks or containers

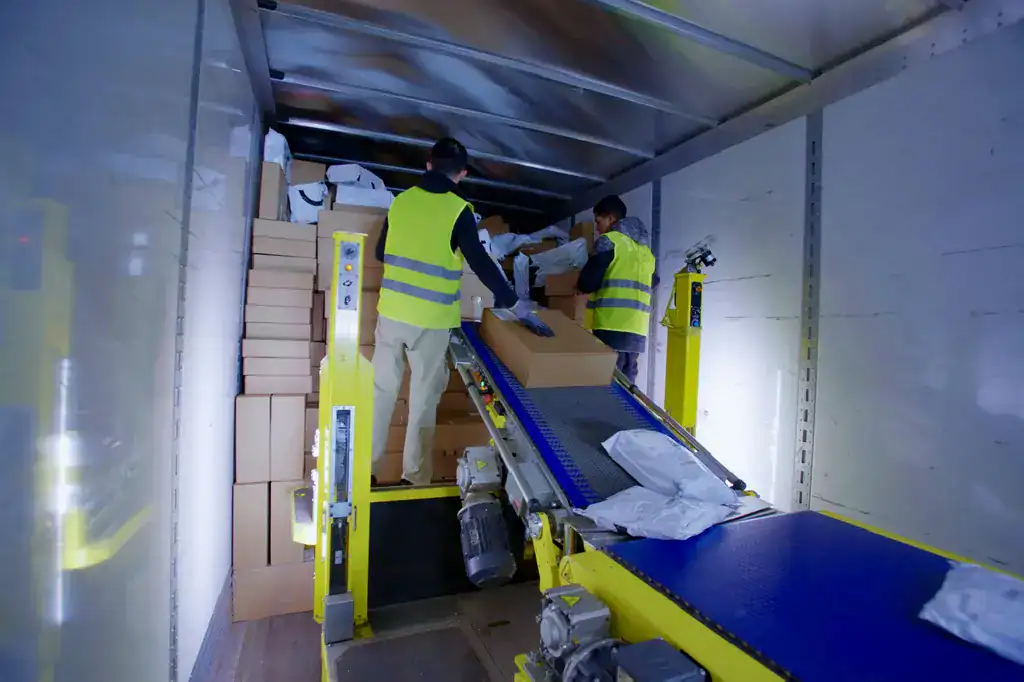

The portable conveyor system Destuff-it™ increases efficiency when unloading containers or trailers and at the same time improves operators’ ergonomics. By optimally aligning the conveyor belt with the package wall, the unloading process is accelerated, while fatigue and muscle strain are significantly reduced. This leads to higher throughput, larger handling capacity and long-term preservation of health workforce.
For equally efficient loading, Restuff-it™ ideally complements the system. Together, both solutions enable maximum productivity and ergonomic working throughout the entire logistics chain – from unloading to loading freight carriers.
Application
- Safe, fast loading and unloading of containers and truck trailers – ideal for inbound and outbound docks
- With a load capacity of 75 kg, heavy loads can be transported ergonomically and safe. The modular belt with easily replaceable wear parts lowers operating cost and minimises downtime
- Convenient access to any position along the package wall thanks to the movable system head – even at floor level or in the top package row
- The platform can be raised and lowered together with the swivel conveyor belt to give the operator a more ergonomic position for loading and unloading
- The Portable Conveyor Systems are self-propelled and can be easily moved from dock to dock
Increase productivity
Using portable conveyor systems, loading and unloading speeds can double compared to manual methods, allowing throughput rates of up to 2,000 boxes per hour
Improve dock utilization
While the products are continuously transported on the conveyor belt, the employees sort and palletize them properly at the end of the line
Improve health and safety
The flexible system head and movable operator platform ensure optimal positioning and reduce strain on employees during loading and unloading. Various sensors actively protect the operator. The result: reduced fatigue, muscle strain and injury
Worthwhile investment
Up to 50 % lower unloading costs and an ROI in under two years — even with just two containers per day
- Robust operator platform (1)
- Movable system head (2) for optimal alignment of the conveyor belt on the parcel wall; load capacity 75 kg at 30° incline
- Handle (3) for intuitive control of the system head by pulling or pushing, including integrated hand detection sensor as a safety function
- Battery-powered drive system with integrated charger (4) to drive into the container or from dock to dock
- Forward moving conveyor belt (5) to transport the unloaded workpieces
- Pressure mats (6) to ensure user safety when riding with the system
- Sensors (7) to avoid collisions and protect people and obstacles
- LED lighting and fans (8) to increase working comfort and reduce the risk of injury
