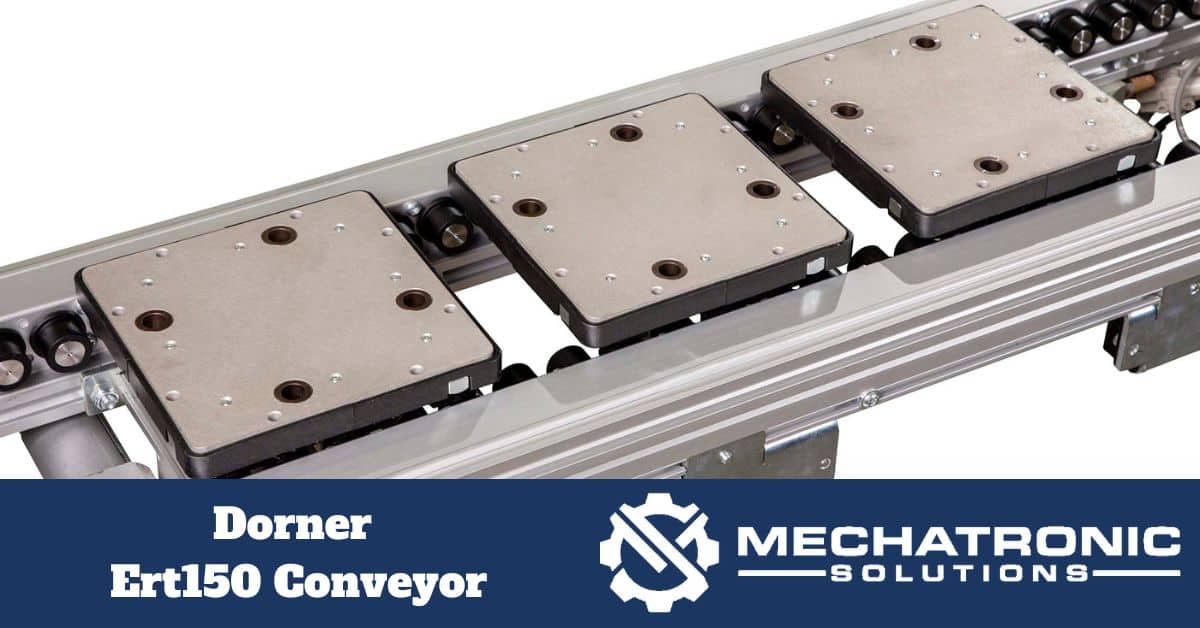

Dorner Ert150 Conveyor

New Product

The ERT150 is the next evolution in Dorner’s Edge Roller Technology platform. The ERT platform is the only pallet conveyor of its kind with an ISO Class 4 rating for cleanroom applications. The ERT150 is ideal for:

  • Pallet and tray handling
  • No and low back pressure accumulation
  • Cleanroom applications
  • Small and light load assembly automation
  • Medical product/device manufacturing
  • Electronic and consumer goods assembly
  • Packaging

The ERT150 uses rollers to move pallet conveyors smoothly with no friction and the conveyor’s open roller design eliminates concerns of small parts or screws dropping into rollers and causing damage or jamming.

The rollers are driven by a patent-pending, energy efficient linear gearbox that gives customers added flexibility with motor positioning and zoning, which allows for zone and slip roller operation. Just removing a lower gear creates independent zones. Non-contact zone control provides simplified traffic control that eliminates pallet stops and costly pneumatic valves. Conversly, slip rollers can be used for full length runs with conventional pneumatic pallet stops. The rollers are easily accessible and can quickly be replaced without affecting the rest of the conveyor.

ERT 150 Technical Specifications Include:

  • 24mm (0.95in) diameter rollers on 32mm (1.36in) centers
  • 80mm (3.15in) to 480mm (18.9in) wide
    • Standard pallet widths from 160mm to 320mm wide
  • Lengths from 128mm to 2,432mm in 66mm increments
    • Conveyors longer than 1,216mm contain two gearmotors
  • Loads up to 35lbs per pallet or tray
  • Speeds up to 37m/minute (121ft/minute)
  • Driven rollers for indexing/zoning and transport applications
  • Slip rollers for low back pressure accumulation
  • Brushless DC gearmotor and controller
    • Gearmotor can be located at multiple locations along length on 128mm increments
  • Bi-directional and reverse moments
  • Outer frame cover: flush design or flexible t-slot options available
  • Clear anodized aluminum framing
  • Electrically conductive polyamide rollers
  • Automation modules:
    • Lift and transfer
    • Lift and locate
    • Lift and rotate
    • Turn and transfer corner
    • Pallet pusher

Mechatronic Solutions is a leading distributor of Dorner conveyors. If you have any questions or would like more information on the ERT150, please contact us and a member of our team will reach out to you.
