INTRODUCING THE NEW ERT™ 250 CONVEYOR FROM DORNER

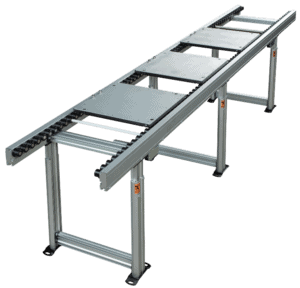

Dorner has officially released their new Edge Roller Technology (ERT) 250 conveyor that provides unique, beltless, zone control for pallet and tray handling. The ERT 250 uses rollers to move pallet conveyors without friction and has an open design that prevents small parts, screws, etc. from dropping into the rollers and causing damage. View our webinar recording to get an in-depth look at the features and benefits of this new conveyor system.
PRODUCTS
PRODUCTS
MANUFACTURERS
AUTOMATION SOLUTIONS
SERVICES
INFO CENTER
ABOUT US

SCHEDULE A

DEMO

This conveyor is ideal for applications that call for pallet or tray handling, no- and low-back pressure accumulation, and medium to heavy load assembly automation. Additionally, it is ISO Class 4 approved, making it a perfect solution for medical product or device manufacturing, assembly, packaging, and more.

The conveyor’s rollers are driven by an energy-efficient, patent-pending linear gearbox that provides users added flexibility with zoning and motor positioning. This also allows zone and slip roller operation. Non-contact zone control eliminates pallet stops and pneumatic valves, but slip rollers can also be used for full length runs with conventional pneumatic pallet stops. Additionally, individual rollers can be replaced without affecting the remaining portions of the conveyor.

Additional Features and Technical Specifications

Automation modules

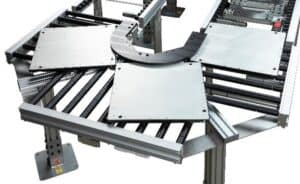

90° and 180° corners
90° pusher
Lift and locate
Lift and transfer
Three transportation modes
Non-contact accumulation
No- or low-back pressure slip roller accumulation
General transport
Energy-efficient brushless DC gearmotors and controllers
Controllers use Ethernet IP for easy communication
Speeds up to 121ft/min
Loads up to 250lbs per pallet/tray
Widths from 120mm to 960mm
38mm diameter rollers on 50mm centers
The ERT 250 is a revolution in conveyance technology. If you’re interested in learning more about this conveyor, view our webinar recording to get a more in-depth look at the features, benefits, applications, and technology. Mechatronic Solutions is a leading distributor of Dorner conveyors and custom conveyor systems utilizing off-the-shelf Dorner products. If you’re interested in learning more or discussing your material handling project, contact Mechatronic Solutions today!
